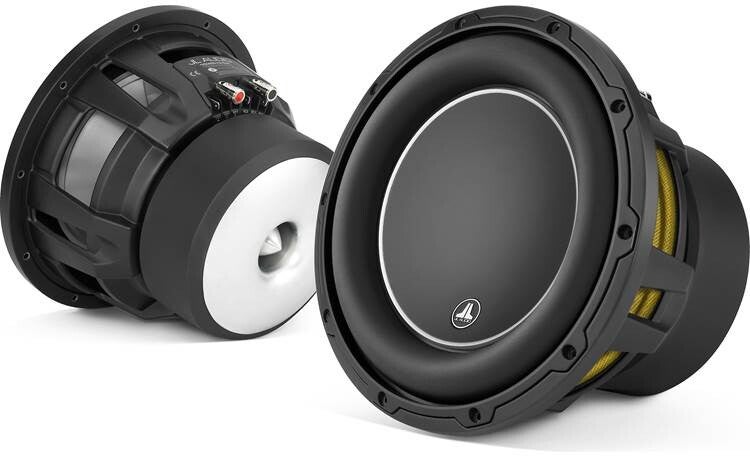

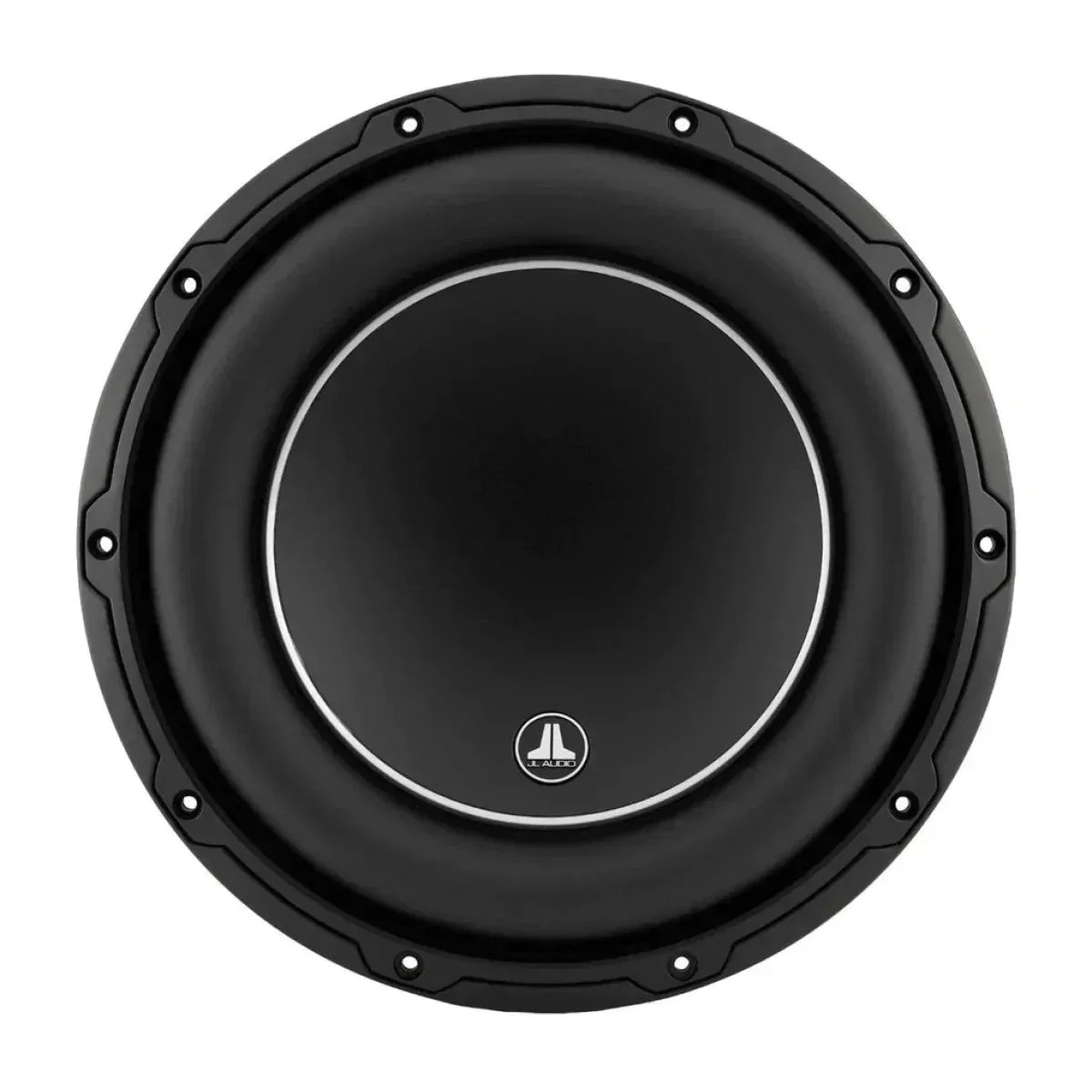

JL Audio 10W6V3-D4 10 inch subwoofer

JL Audio 10W6V3-D4 10 inch subwoofer
€699.00

JL Audio 10W6V3-D4



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • W6v3 10-inch subwoofer (600 W, dual 4 Ω voice coils)
  • If you want to reproduce the highest quality sub-bass in a very compact cabinet application, the 10W6v3 is the ultimate choice.
  • This advanced subwoofer features several technologies shared with the flagship W7AE subwoofers to achieve strong advantages in motor linearity and suspension behavior.
  • In combination with a very efficient cooling circuit, they ensure reduced distortion and an excellent dynamic balance.
  • The 10W6v3 is best used with amplifier power in the 200W - 600W range and is optimized for operation in a sealed enclosure with only 15.6L (0.55 cu. ft.) volume or a 21.2L (0.75 cu. ft.) bass reflex enclosure.
  • Greater excursion and higher power handling differentiate it from JL's 10W3v3 10-inch subwoofer and enable higher output.
  • Dual 4 Ω voice coils allow the W6v3 to be used as a 2 Ω or 8 Ω driver.

General specifications



  • Continuous load capacity (RMS) : 600 W
  • Recommended amplifier power (RMS): 200 - 600 W
  • Nominal impedance (Znom) : Dual 4 Ω

Dimensions

  • Nominal diameter: 250 mm / 10.0 inch
  • Overall diameter (A): 267 mm / 10.5 inches
  • Diameter of the mounting hole (B) : 229 mm / 9.02 inch
  • Bolt circle diameter (C) : 250 mm / 9.86 inch
  • Motor outer diameter (D): 172 mm / 6.76 inches
  • Installation depth (E) : 175 mm (6.89 inches)
  • Required ventilation clearance behind the pole core hole: 13 mm / 0.50 inch
  • Volume displacement : 0.078 cu ft / 2.1 L
  • Net weight : 20 lb / 9,1 kg

Parameters

  • Free air resonance (Fs) : 30.12 Hz
  • Electrical "Q" (Qes) : 0.543
  • Mechanical "Q" (Qms) : 9.228
  • Total quality "Q" (Qts) : 0.513
  • Equivalent volume (Vas) : 0.821 cu ft / 23.25 L
  • Simple linear deflection (Xmax) : 0.75 inch/19 mm
  • Reference efficiency : 0.11%
  • Efficiency (1 W / 1 m) : 82.7 dB SPL
  • Effective diaphragm area (Sd) : 0.0318 square meters
  • Direct current resistance (Re) : 6.452 Ω
