JL Audio LOC-22 high level adapter (high-low converter)

JL Audio LOC-22 high level adapter (high-low converter)
€119.00

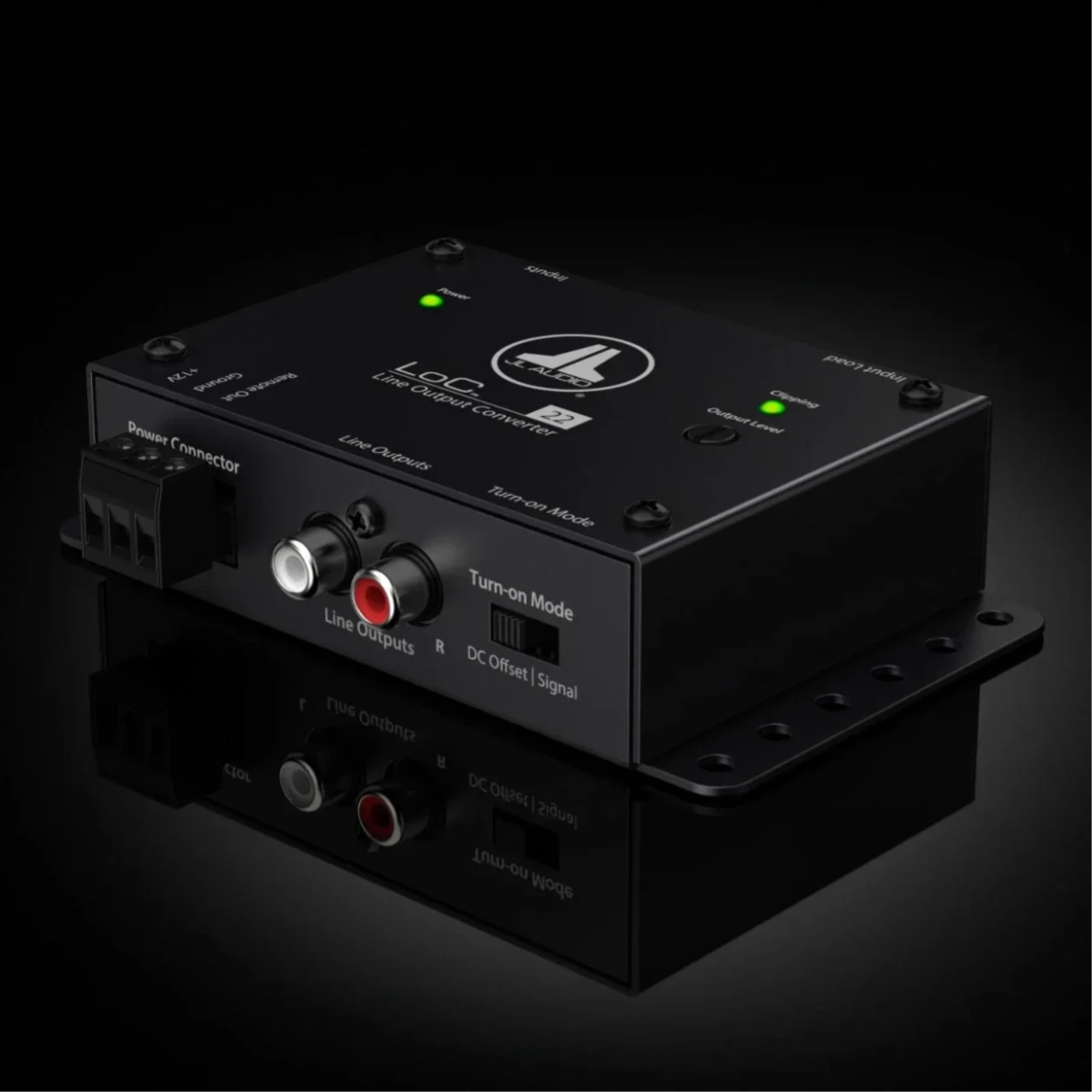

JL Audio LOC-22



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • Fully active two-channel speaker level line output converter with automatic switch-on
  • Designed by JL Audio Sr. engineer Bruce Macmillan, the LoC-22 is a two-channel active processor designed for applications requiring the conversion of factory audio signals for use with aftermarket amplifiers and signal processors.
  • The LoC-22 uses a fully regulated, switching MOSFET power supply and an all-analog circuit design to deliver a flat frequency response at any signal level (3 Hz - 32 kHz, +0, -1dB) without altering bass response at high levels, as is the case with many passive line output converters.
  • Designed to combat induced cable noise, the LoC-22 features a differential balanced input architecture that makes it compatible with virtually any analog audio signal.
  • The LoC-22 can record up to 40 V RMS per channel (equivalent to 400 W into 4 ohms) and easily handles the most powerful factory amplifier outputs.
  • A built-in dual-range input load switch enables compatibility with most factory amplifiers that use impedance measurement to mute channels.
  • Ideal for full range or low frequency applications, the LoC-22 is equipped with a pair of line level analog RCA output jacks (up to 8 V RMS) for feeding audio signals into your aftermarket system. The analog outputs are compatible with most types of signal processors or aftermarket amplifiers.
  • Adjusting the output levels is super simple and easy thanks to a specially calibrated, integrated clipping display that works with test tones or music.
  • The LoC-22 offers two automatic turn-on methods (DC offset detection or signal detection) and provides a positive 12V turn-on output for activating aftermarket amplifiers or other downstream electronics.

    General specifications

    • Type of power supply : Switching, MOSFET PWM, Regulated
    • Operating voltage : 9 - 16 V DC
    • Standby-Stromaufnahme: <1,6 mA
    • Current consumption during operation: 0.13 A at 13.8 V
    • Frequency response : 3 Hz - 32 kHz (+0 dB, -1dB)
    • S/N ratio at 2V RMS : Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz bandwidth)
    • Remote output capacity : 100 mA (maximum)
    • Recommended fuse value: 1 A
    • Recommended fuse type : Fast acting, ATO/ATC or similar
    • Input channels : Two
    • Input type : Differential-balanced
    • Input voltage : 40V RMS per channel (maximum)
    • Input impedance : Normal: 20kΩ
    • Switch-on threshold : Signal detection : 5 mV On/3.5 mV Off at 1 kHz (left input) DC offset: 4.5 V
    • Output channels : Two
    • Analog output : unbalanced, stereo RCA sockets
    • Max. Unencapsulated output 8V RMS
    • Output impedance : 450 Ω
    • Gain range : -27.3 dB (full CCW) to +3.2 dB (full CW)
      THD+N 0.01% at 2V RMS (1kHz)

    Dimensions

    • Height (H) : 1.23 in / 31 mm
    • Width (W): 120 mm (4.72 inches)
    • Depth (D) : 3.04 inch / 77 mm
