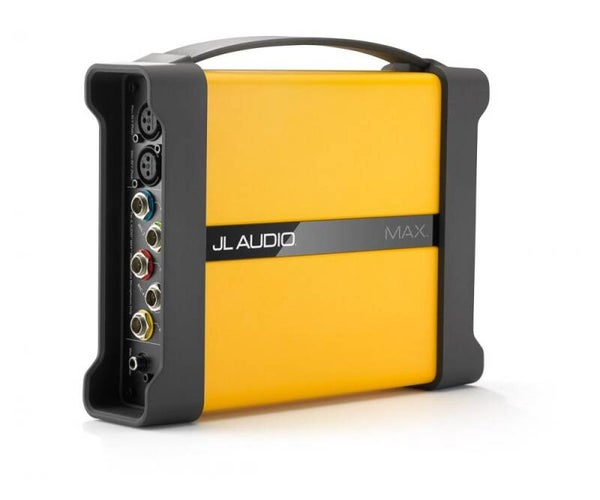

JL Audio MAX-KIT Measurement system

JL Audio MAX-KIT Measurement system
€4,299.00

JL Audio MAX-KIT



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 5 - 8 days extra delivery time

Productinfo

  • Test, troubleshoot and analyze any audio system with full details on the three dimensions of audio: level, frequency and time... all in real time!

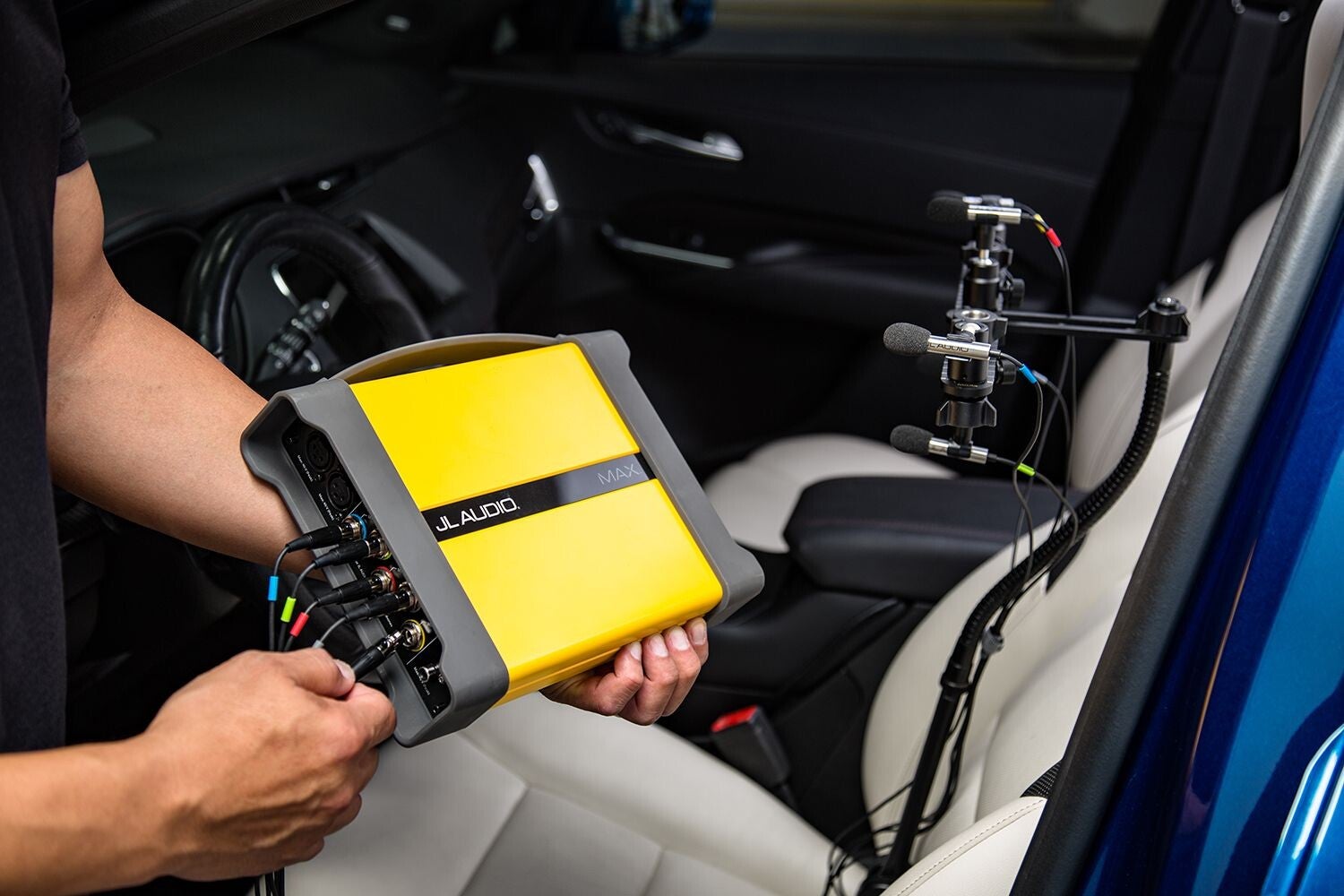

  • Optimize the tuning of car audio DSP products in real workshop environments. Simply connect the hardware, place the microphone array, start the TüN™ software and off you go!
  • Quickly test room modes for home theater and subwoofer placement and precisely adjust crossover and phase controls to ensure a seamless transition to the subwoofer.

  • Evaluate individual or multiple audio zones in a ship installation for frequency response and level.

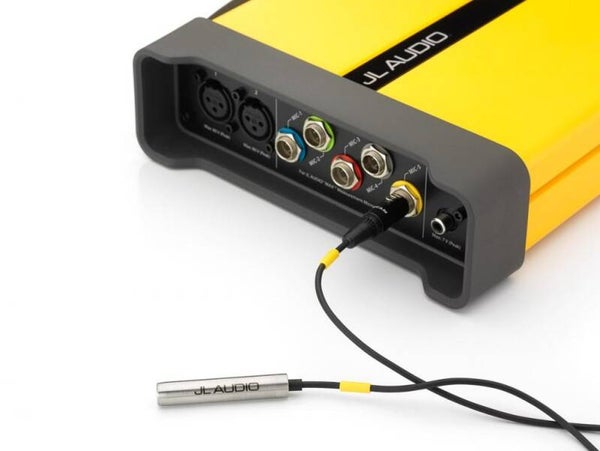

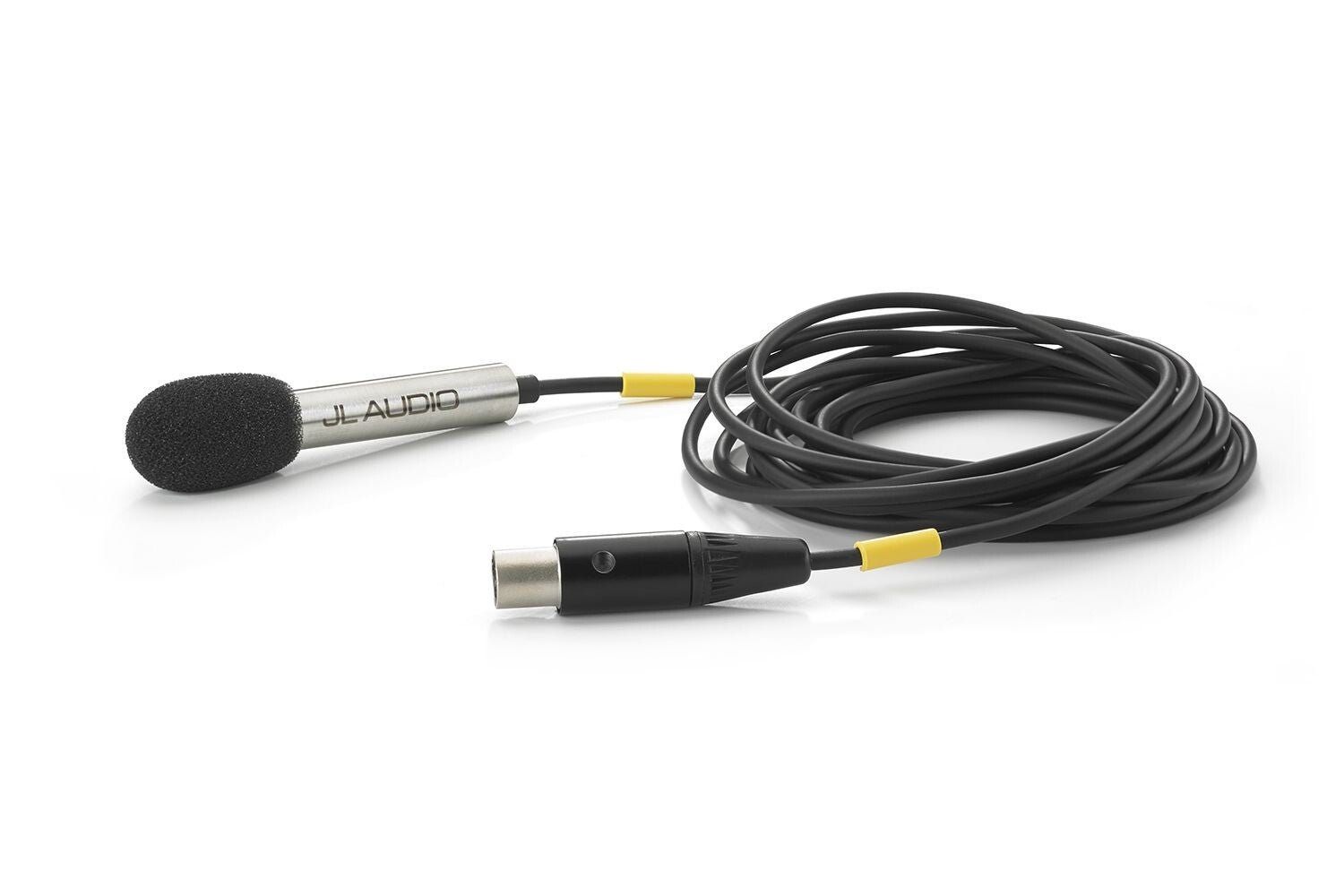

  • Get the best possible measurements with 5-microphone averaging! MAX™ multiplexes up to five included microphones to perform individual FFT measurements of level and frequency response (RTA and spectrograph).

  • Perform dual FFT measurements of up to five simultaneous transfer functions with precise displays of magnitude (frequency response), phase, impulse response (delay) and coherence (noise immunity).

  • Each transfer function captures all audio data for real-time or comparative analysis.

  • Built-in test signal generator (pink and white noise, sine waves, square waves, etc.) and the ability to play WAV files.

Advantages in connection with VXi amplifiers

  • The automatic True Delay function adjusts the VXi/MVi channel delays at lightning speed and much more accurately than any other method.
  • The Autoset EQ function adjusts the VXi/MVi's parametric EQs to your chosen target in seconds. You can also place the VXi/MVi equalizer controls over the frequency response display to make precise manual EQ adjustments with real-time visual feedback.

Flexibility like never before

  • The measurement accuracy of MAX™ is comparable to that of professional test equipment sold for tens of thousands of dollars.

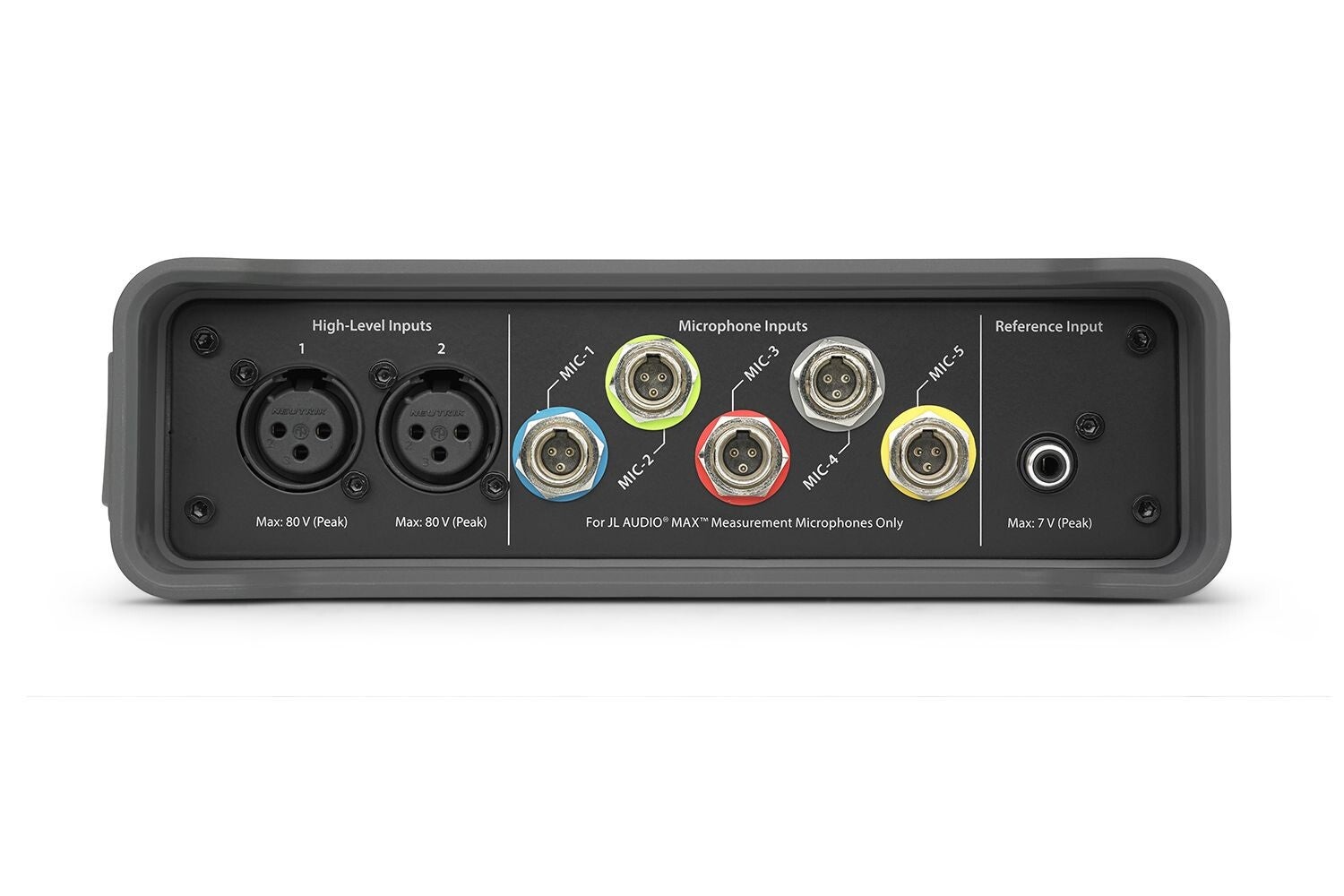

  • Wide range of inputs (up to five microphones, analog high-level signals up to 80 V, analog low-level signals up to 7 V, optical digital S/PDIF signals)

  • Multiple signal outputs (integrated DAC, which feeds analog line-level outputs and headphone outputs, as well as an optical digital output)

  • A built-in USB hub simplifies connection to computers and DSP amplifiers or other USB devices (not intended for charging devices).


Scope of delivery

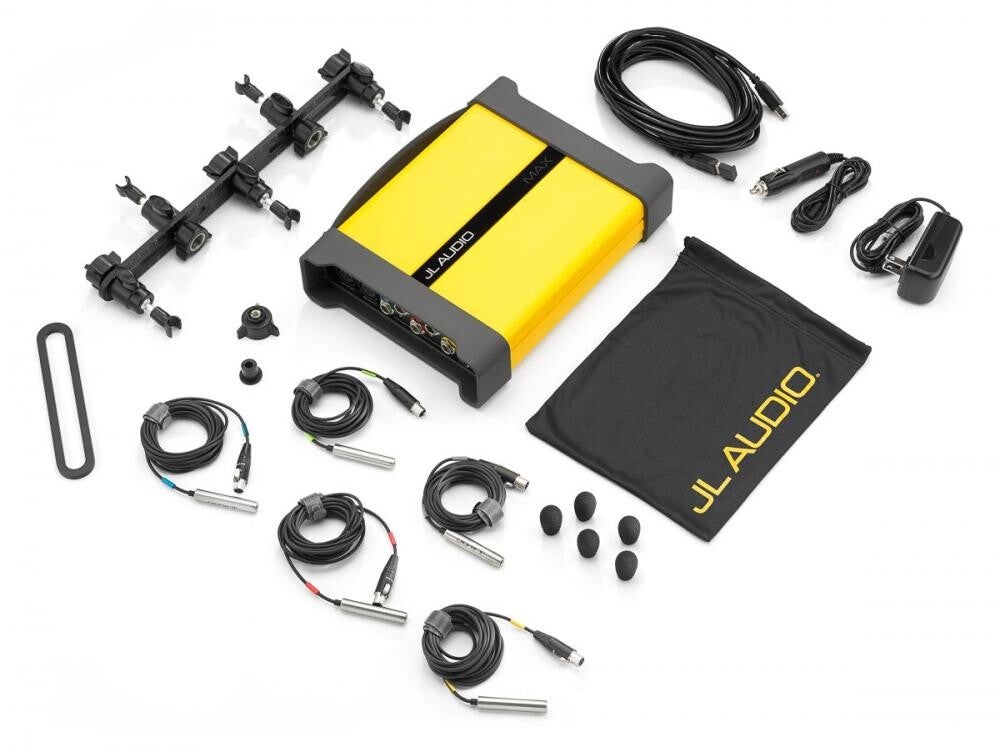

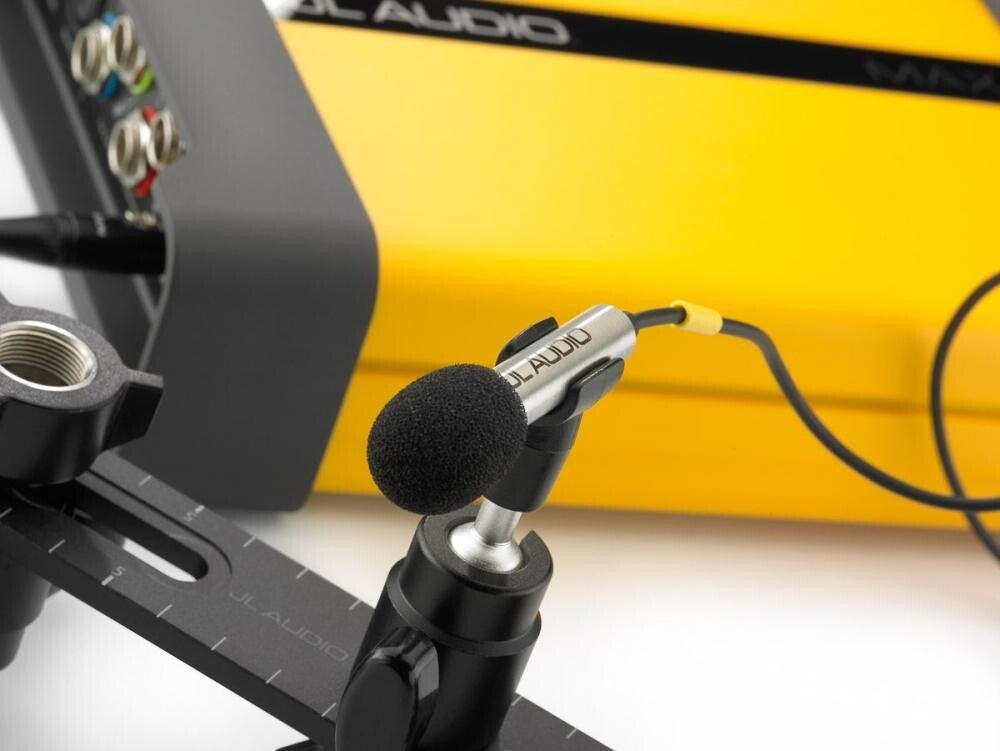

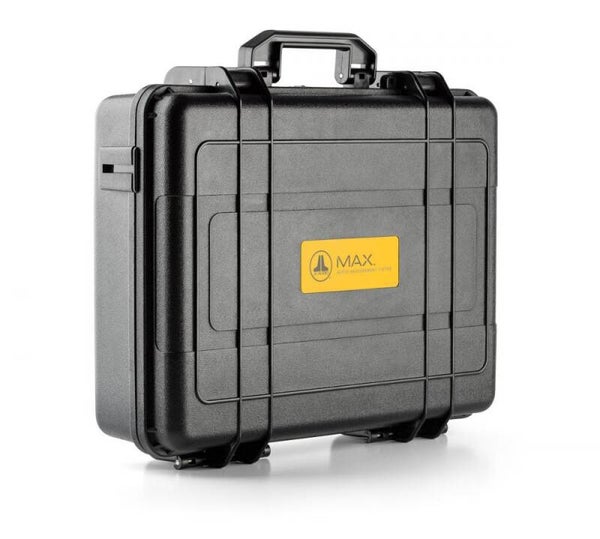

  • The MAX-KIT contains the MAX™ hardware interface, five measurement microphones, a multi-microphone holder, mounting accessories, cables and power supplies, all packed in a lockable, waterproof hard case.

  • An optional, special probe kit for measuring loudspeaker impedance and electrical high voltage is available separately: "MAX-PROBE KIT" (90922)


What you also need

  • A PC (Windows 10) or a Mac (OS X Catalina or newer)

  • Our free software TüN 4.
  • A microphone stand or tripod to hold the multi-microphone holder.
