JL Audio TWK-D8 DSP

JL Audio TWK-D8 DSP
€499.00

JL Audio TWK-D8



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo

  • System tuning DSP with digital optical input / 8-ch. Stereo RCA outputs / 1 digital optical output
  • The TwK™ D8 is a state-of-the-art digital signal processor designed to deliver system tuning capabilities in a user-friendly format.
  • Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM integration DSP or any 2-channel digital output (S/PDIF) to maintain a fully digital signal path.
  • The TwK™ D8 is also equipped with flexible output options, a total of 80 equalization bands and powerful mixing tools.
  • The DRC-200 digital remote control included in the scope of delivery offers two level controls, switches up to six presets and has an LED display.

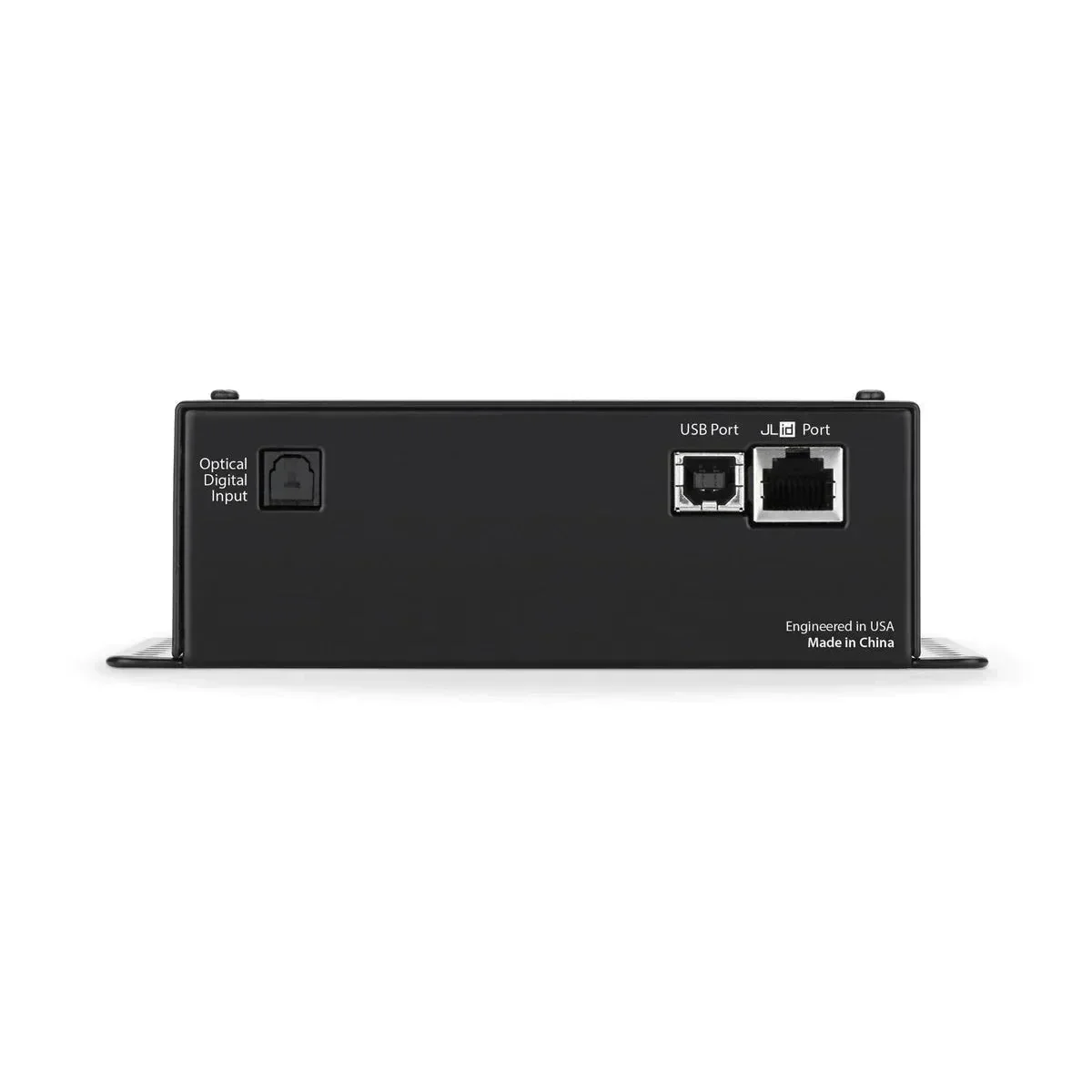

  • The fully digital, optical (Toslink) input is connected directly to any digital (S/PDIF) output.
  • A flexible input mixer allows the left and right input channels to be combined with full control over the level and polarity of each input.
  • 8 blocks with 10-band graphic or parametric equalizers with configurable EQ assignment
  • Powerful crossover with fully variable high-pass and low-pass filters, the crossover slope can be selected from 6 dB/octave to 48 dB/octave (in steps of 6 dB/octave)
  • Configurable polarity and delay settings with separate entries for speaker distance plus offset control; fully linkable with other channels in any combination for customization
    Precise output level controls, adjustable in 0.5 or 0.1 dB steps, fully linkable with other channels, in any combination

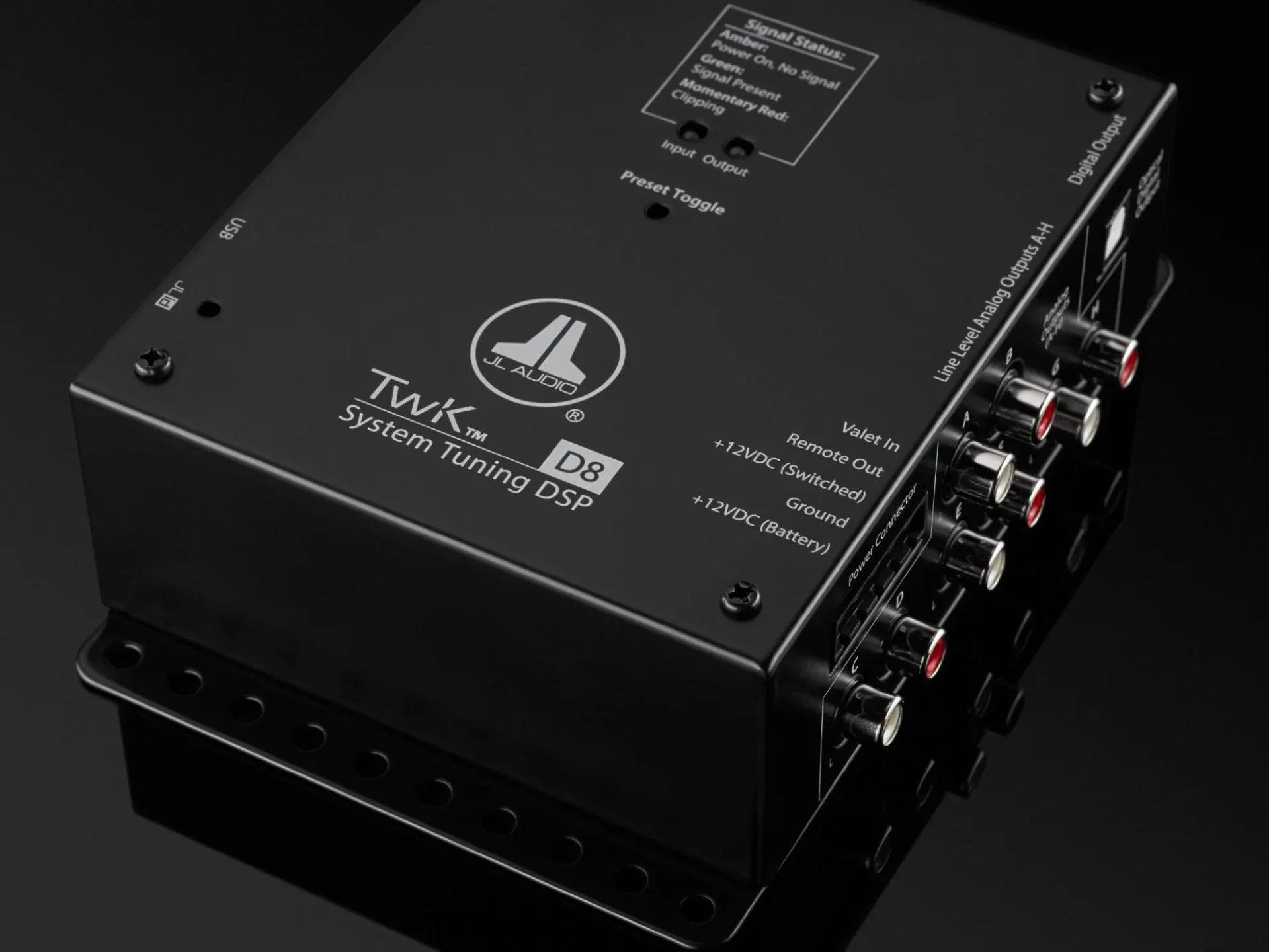

  • 8 analog, line-level RCA output sockets (4V RMS)
  • The optical (Toslink) output socket provides a digital pass-through audio signal (S/PDIF) from any pair of input channels, with no signal processing applied.

    General specifications

    • Type of power supply : Regulated DC-DC-SMPS
    • Input operating voltage : 10 - 16 VDC
    • Standby-Stromaufnahme: <1,5 mA
    • Current consumption during operation: 0.7 A
    • Recommended fuse value: 1 A
    • Input channels Single Digital : 1x
    • Input type : Differential-balanced
    • Input voltage range : 250 mV - 7.1 V RMS
    • Minimum input voltage : 10 mV RMS
    • Output channels : Eight
    • Analog output : unbalanced, stereo RCA sockets
    • Digital output : Optical (Toslink) output (S/PDIF)
    • Output impedance : 450 Ω
    • Latency time : Optical - Optical: 4.860 mS
    • Optical - Analog: 4.805 mS
    • S/N ratio : 96 dB (A-weighted, based on 4V RMS output)
    • THD+N @ nominal output :0.02% (20 Hz - 20 kHz)

    Signal processing

    • Audio resolution : HiRes with 24 bit / 48 kHz
    • Number of EQ bands : 10 x 8 channels
    • Remote control : Included (DRC-200)
    • Remote level functions: master volume control + trim; master volume control + fader; zone controller, LED status report

    Dimensions

    • Height (H) : 1.85 inch / 47 mm
    • Width (W): 109 mm (4.29 inches)
    • Depth (D) : 156 mm (6.14 inches)
