JL Audio TWK-88 DSP

JL Audio TWK-88 DSP
€619.00

JL Audio TWK-88 DSP



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo

  • System Tuning DSP with 8-channel. Stereo RCA inputs / 2 digital (optical and coaxial) inputs / 8-channel. Stereo RCA outputs / 1 digital optical output
  • The TwK™ 88 is a state-of-the-art digital signal processor designed to deliver world-class system tuning capabilities in a user-friendly format.
  • Equipped with an advanced 24-bit DSP processor, the TwK™ 88 offers flexible input/output options, a total of 80 equalization bands and powerful mixing tools.
  • The included DRC-200 digital remote control offers two level controls, switches up to six presets and features an LED indicator.
  • Flexible input design with 8 differentially balanced analog line-level inputs (RCA) that accept line-level signals up to 7.1V (RMS)
    Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources.
  • Flexible input mixer allows the combination of input channels with full control over the level and polarity of each input.
  • 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
  • Powerful crossover with fully variable high and low pass filters, the slope of the crossover is selectable from 6 dB/octave to 48 dB/octave (in steps of 6 dB/octave)
  • Configurable polarity and delay settings with separate entries for speaker distance plus offset control; fully linkable with other channels in any combination for customization
    Precise output level controls, adjustable in 0.5 or 0.1 dB steps, fully linkable with other channels, in any combination

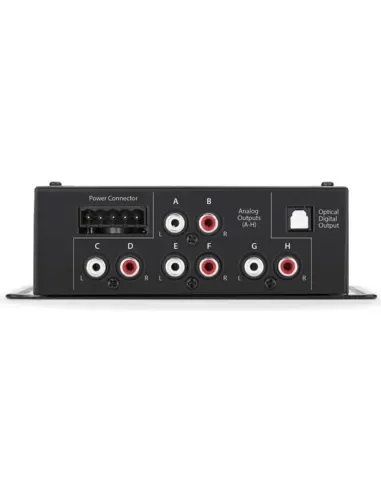

    8 analog, line-level RCA output sockets (4V RMS)
  • The optical (Toslink) output socket provides a digital pass-through audio signal (S/PDIF) from any pair of input channels, with no signal processing applied.
  • Remote power-on output (+12VDC) for activation of aftermarket audio devices.
  • JLid™ connector allows connection of the included DRC-200 digital remote control unit to add two configurable level controls, preset selection and LED status messages from the driver's seat.

    General specifications

    • Power supply type : Regulated DC-DC SMPS
    • Input operating voltage : 10 - 16 VDC
    • Standby current consumption: <1.5 mA
    • Current consumption during operation: 0.7 A
    • Recommended fuse value: 1 A
    • Input channels : Eight
    • Input type : Line level, differential balanced
    • Input voltage range : 250 mV - 7.1 V RMS
    • Minimum input voltage : 10 mV RMS
    • Input level adjustment : Eleven discrete selections from 250 mV - 7.1V RMS
    • Output channels : Eight
    • Analog output: unbalanced, stereo RCA jacks
    • Digital output : Optical (Toslink) output (S/PDIF)
    • Output impedance : 450 Ω
    • Latency time : Analog - Analog: 5.425 mS
    • Analog - Optical: 5,470 mS
    • Optical - Optical: 4.860 mS
    • Optical - Analog: 4.805 mS
    • S/N ratio : 98 dB (A-weighted, based on 4V RMS output)
    • THD+N @ nominal output : 0.02% (20 Hz - 20 kHz)

    Signal processing

    • Audio resolution : Hires with24 bit / 48 kHz
    • Number of EQ bands : 10 x 8 channels
    • Remote control : Included (DRC-200)
    • Remote level functions : Master volume control + trim; master volume control + fader; zone control, LED status report

    Dimensions

    • Height (H) : 1.85 inch / 47 mm
    • Width (W): 109 mm (4.29 inches)
    • Depth (D) : 156 mm (6.14 inches)
