JL Audio FIX-86

JL Audio FIX-86
€575.00

JL Audio FIX-86



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -3 days extra delivery time

Productinfo:

  • OEM integration DSP with automatic time correction and digital EQ.
  • 8-channel inputs
  • 4-channel. Stereo + 2 subwoofer RCA outputs

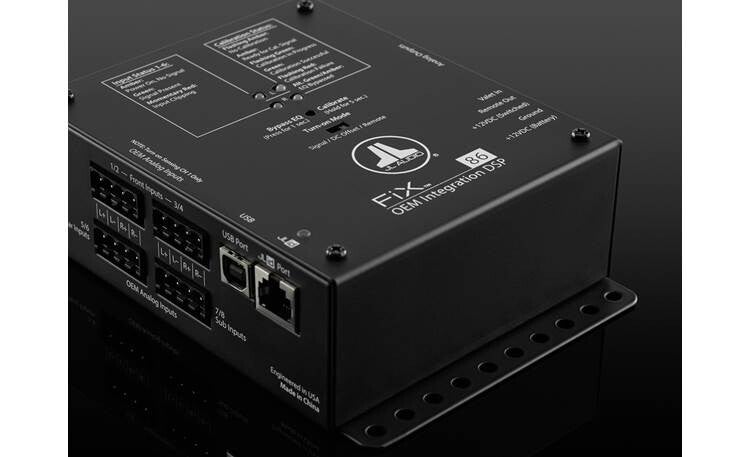

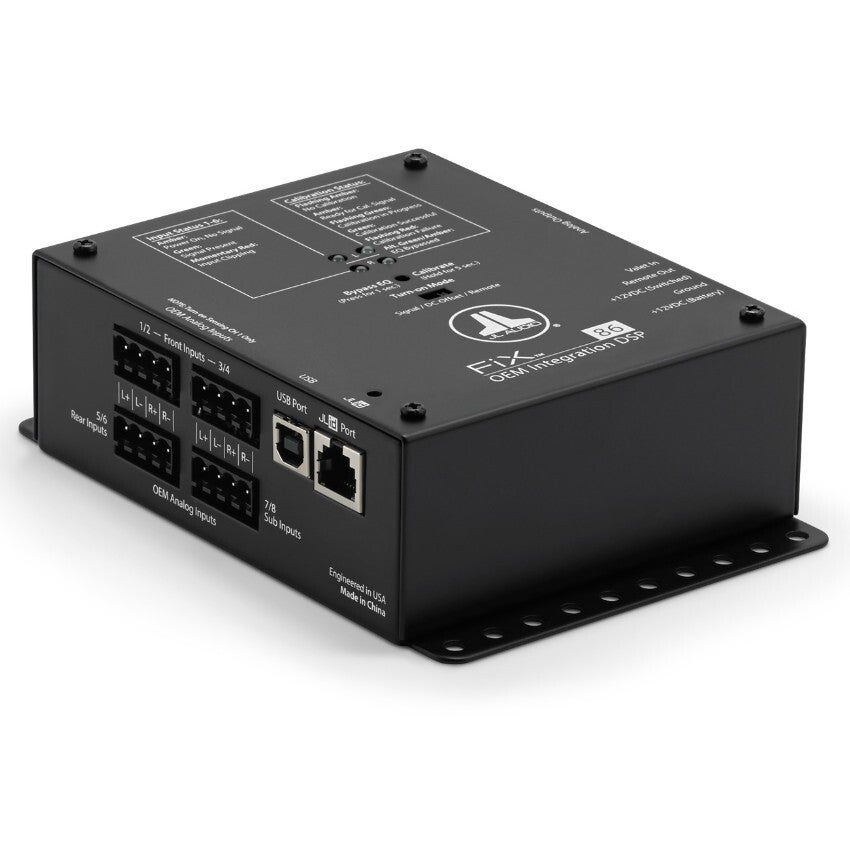

  • The FiX™ 86 is a state-of-the-art digital signal processor designed to deliver superior sound from factory source devices while maintaining OEM fader control.
    Unlike typical OEM interface products, the FiX™ 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction.
  • Calibration takes just a single button press and about 30 seconds, with no special equipment required.
  • With a powerful 24-bit DSP processor and two 1/3-octave equalizers on board, complex 2-way, 3-way and 4-way factory audio outputs are automatically combined and level-matched to a flat, full-range stereo signal. Differential balanced inputs accept virtually any OEM analog audio signal, from low voltage line level to high power amplified speaker outputs (up to 30 V RMS).
  • Calibration is initiated with a single button press and takes only about 30 seconds, with no special equipment required!
  • By connecting a PC with the TüN™ software via USB, you can also access a complete set of diagnostic panels that display the frequency response of the input signals as well as the corrected outputs. Adjustments can be made to input polarity, muting and filtering, and new calibrations can also be initiated from the PC. By clicking on the "TUNE" tab of the TüN™ interface, you can also access a pair of user-adjustable 10-band graphic equalizers for fine-tuning the output signals.
  • Output options include two RCA jacks (4V RMS) or a digital (JLId) output that supports 24-bit/48 kHz resolution PCM audio.
  • Activation methods include 12 volt or automatic (signal/DC offset detection) and a dedicated remote power-on output to activate your aftermarket equipment.
  • Optional DRC-100 digital remote control (sold separately) to activate the master volume control from the driver's seat.
  • Limited input signals and overall status are also reported via the DRC-100's multi-color status LED.
  • It's never been easier or better sounding than with your factory stereo.

General specifications

  • Power supply type : Regulated DC-DC SMPS
  • Input operating voltage : 10 - 16 VDC
  • Standby current consumption: <1.5 mA
  • Current consumption during operation: 0.7 A
  • Recommended fuse value: 1 A
  • Input channels : Eight
  • Input type : Differential-balanced
  • Input voltage range : 250 mV - 30 V RMS
  • Minimum input voltage : 10 mV RMS
  • Input level adjustment : Fully automatic
  • Output channels : Two
  • Analog output : unbalanced, stereo RCA jacks
  • Digital output
  • Output impedance : 450 Ω
  • S/N ratio : 96 dB (A-weighted, referred to 4V RMS output)
  • THD+N @ nominal output : 0.02% (20 Hz - 20 kHz)

Signal processing

  • Audio resolution : HiRes with 24 bit / 48 kHz
  • Number of EQ bands : 30 x 2 channels
  • EQ resolution : 1/3 octave (25 Hz - 20 kHz)
  • Remote control : Optional (DRC-100)
  • Remote level functions : Master volume control, hands-free optimization, LED status report

    Dimensions

    • Height (H) : 1.85 inch / 47 mm
    • Width (W): 109 mm (4.29 inches)
    • Depth (D) : 156 mm (6.14 inches)
