JL Audio HO110W6V3 10 inch subwoofer

JL Audio HO110W6V3 10 inch subwoofer
€999.00

JL Audio HO110W6V3



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

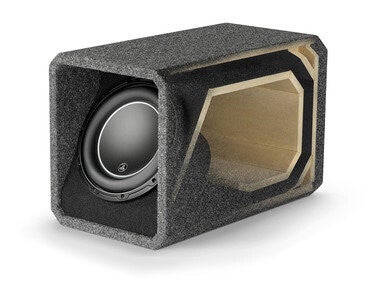

  • Enclosure subwoofer system with a 10W6v3-D4 subwoofer, dark gray/black carpet (600 W, 2 Ω) - bass reflex enclosure
  • JL Audio's patented high-performance enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and impressive power.
  • In the HO110-W6v3, the high power handling of the 10W6v3 subwoofer combined with its low cabinet requirements results in a very compact subwoofer system that delivers impressive performance with moderate amplifier power.

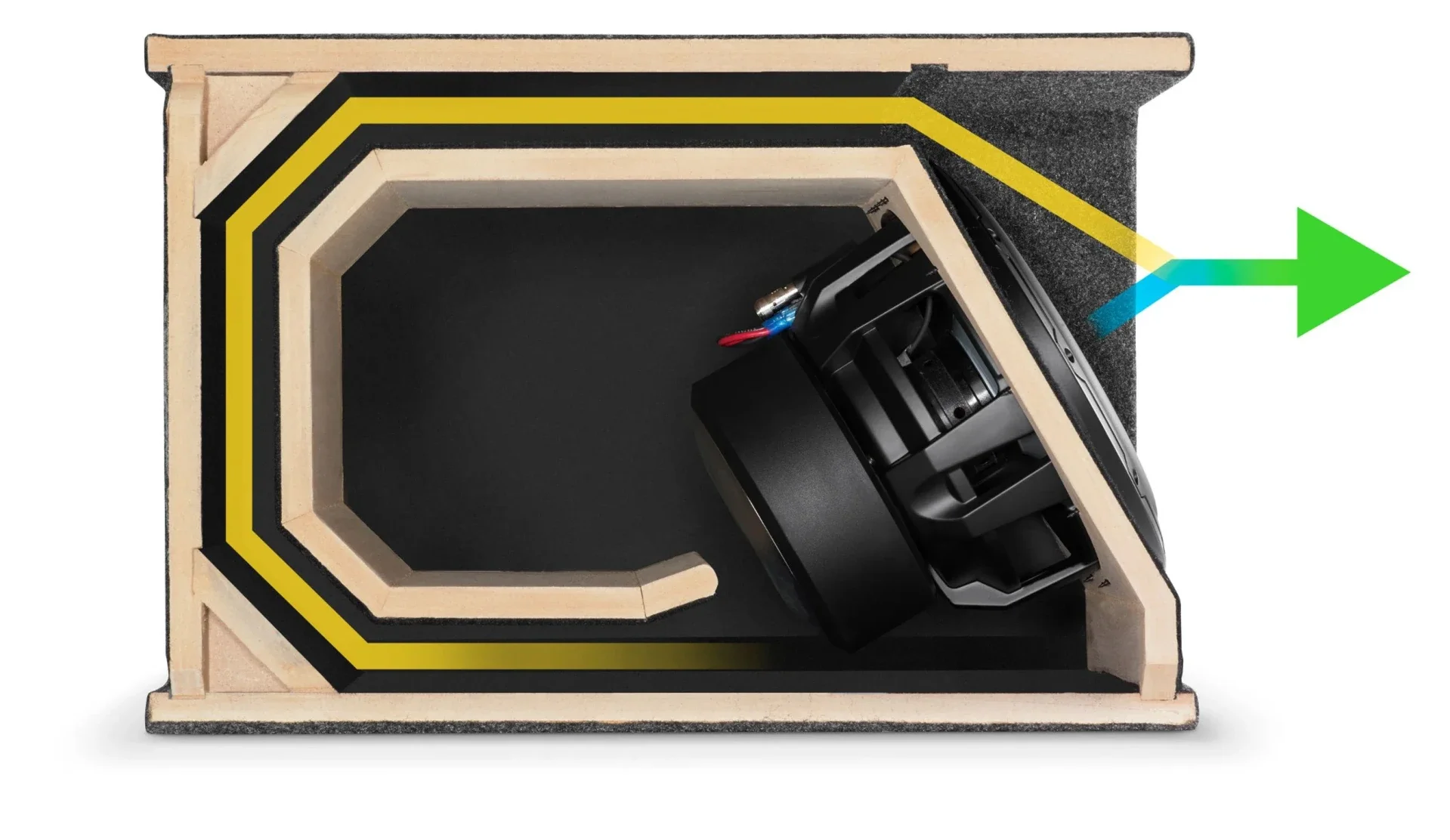

  • JL Audio's patented chamber-coupled port design (US Patent No. 6,625,292) wraps around the inner enclosure boundary and terminates directly above the woofer, coupling the port output to the direct output of the woofer. This also provides the necessary surface area and port length to maximize the performance of the W6v3 driver. This cabinet design has been carefully matched to the optimum bass reflex cabinet orientation for the 10W6v3 and refined through extensive listening in real world conditions.
  • This subwoofer system is supplied wired, loaded and ready for connection via a five-way binding post terminal. Although there is no grille, the recessed baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (model: SGR-10W6v2/v3) if additional woofer protection is required.
  • Finish: Dark gray, high-quality car carpet, with black carpet on the baffle of the woofer. "JL AUDIO" is embroidered in silver on the side of the cabinet.
  • Construction: CNC-cut, high-quality MDF
  • Recommended amplifier power: 200 - 600W
  • Nominal impedance: 2 Ω

General specifications

  • Continuous load capacity (RMS) : 600 W
  • Nominal system impedance : 2 Ω
  • Housing type : chamber-coupled, slot feed-through, back-fired
  • Finish : Dark gray carpet with black insert

Dimensions

  • Outer width (W) : 308 mm
  • Outer height (H) : 356 mm
  • Outer depth (D1) : 552 mm
