JL Audio C2-600 6 inch (150 mm) componentset ( composet )

JL Audio C2-600 6 inch (150 mm) componentset ( composet )
€299.00

JL Audio C2-600



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

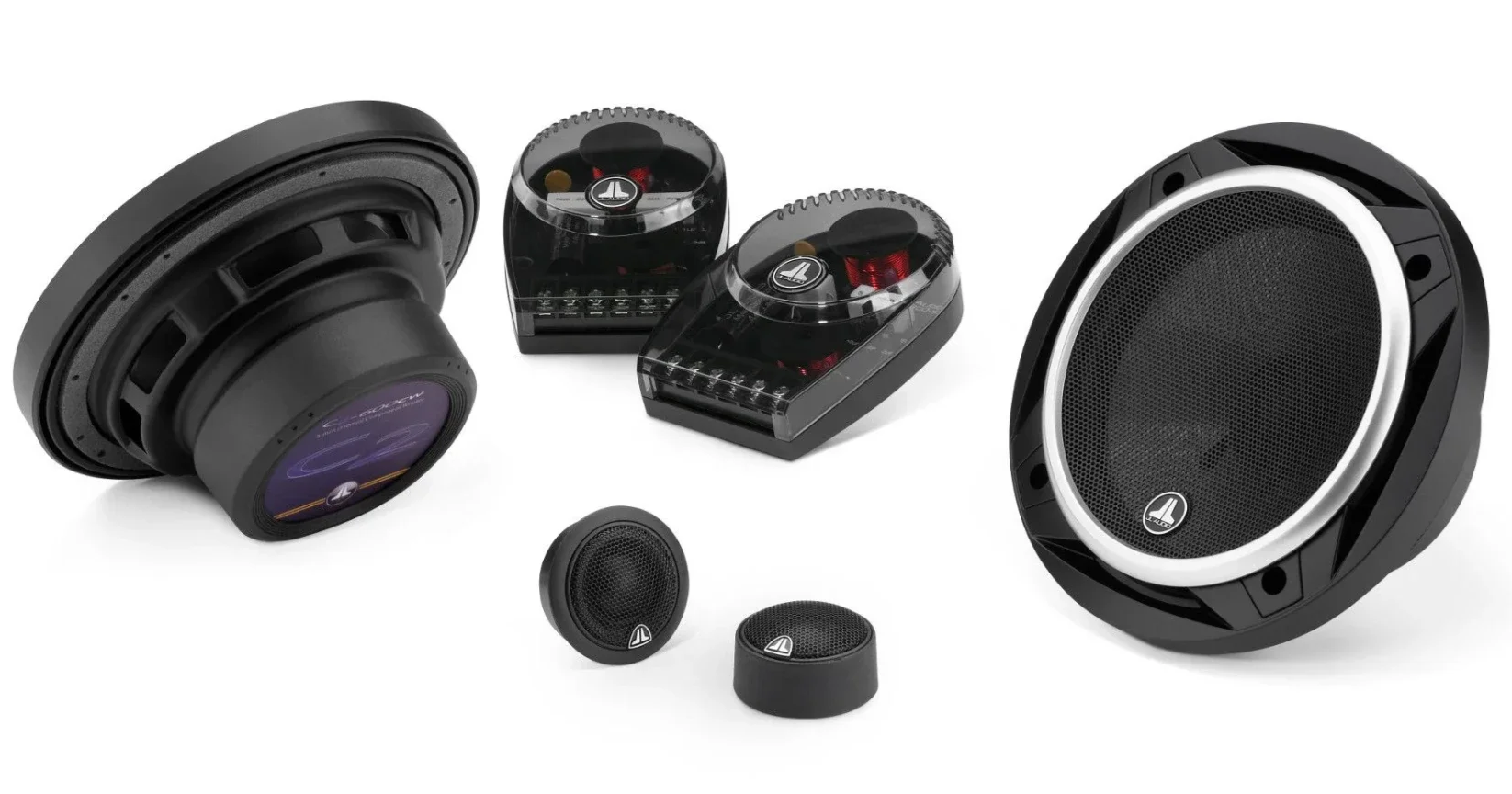

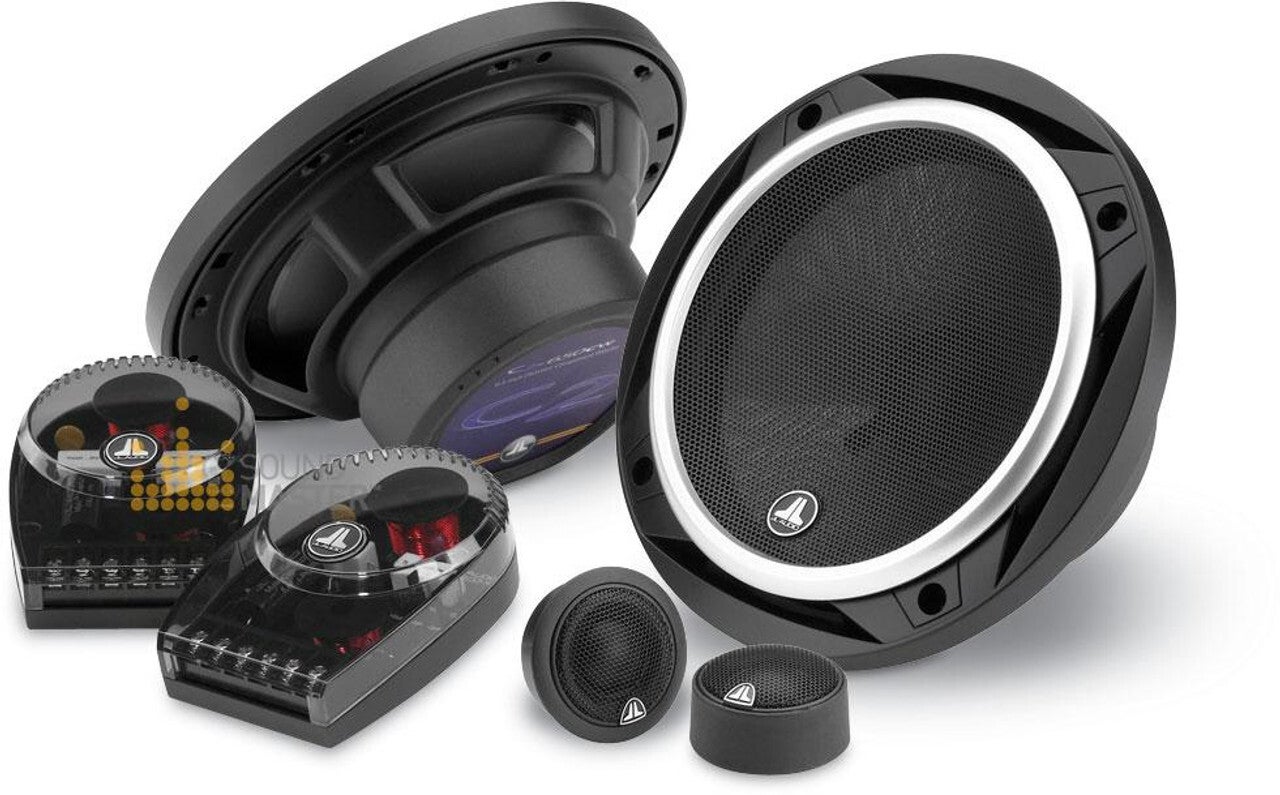

  • 2-way component system with 6-inch (150 mm) woofer and 0.75-inch (19 mm) silk dome tweeter
  • Evolution C2 systems deliver sparkling high frequency detail, smooth midrange and powerful midrange thanks to true silk dome tweeters and long linear excursion woofers.
  • The C2-600 system features 6-inch (150mm) component bass-midrange drivers with mineral-filled polypropylene cone, long excursion capability and stamped steel frame. The woofer-midrange design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.
  • The 6-inch format (150 mm) fits directly into many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Several mounting patterns are provided on the woofer frame for easy installation in most vehicles that can accommodate a 6-inch (150 mm) speaker.

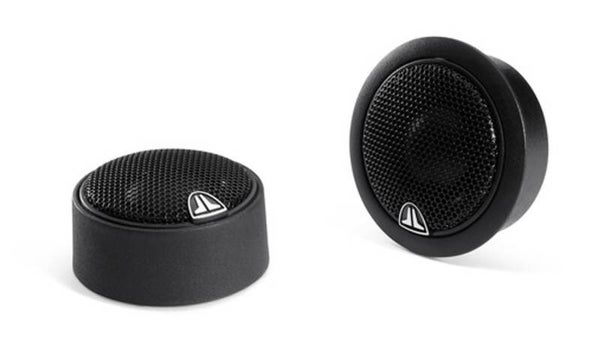

  • The C2 component tweeters are constructed with 0.75-inch silk dome cones that deliver a smooth, extended on-axis and off-axis response. In-wall and "on-wall" mounting fixtures are included to accommodate a variety of installation requirements.
  • The C2 crossovers are compact and use high quality components including Mylar® capacitors and segmented air core coils. The tweeter is damped in three stages and fitted with a tweeter protection.
  • Woofer grilles are included, each consisting of a black grille surround with satin silver accents and a black steel grille with an electroformed JL Audio logo.
  • Sonic character: Clean and dynamic
  • Sold as a pair

General specifications

  • Continuous power handling (RMS) : 60 W
  • Recommended amplifier power (RMS) : 15 - 100 W / Ch.
  • System efficiency : 90.5 dB at 1 W / 1 m
  • Nominal system impedance : 4 Ω
  • System frequency response : 59 Hz - 22 KHz ± 3 dB
  • Frame outer diameter (A) : 158 mm / 6.21 inch
  • Outer diameter of the grill shell (B): 163 mm / 6.51 inches
  • Motor outer diameter (C) : 80 mm / 3.15 inches
  • Front coaxial tweeter projection (D) : N/A
  • Front grille projection (E) : 23 mm / 0.91 inch
  • Mounting hole diameter (F) : 127 mm / 5.00 inch
  • Mounting depth (G) : 60 mm (2.38 inches)
