JL Audio C3-600 6 inch (150 mm) convertible component/coaxial system

JL Audio C3-600 6 inch (150 mm) convertible component/coaxial system
€549.00

JL Audio C3-600



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

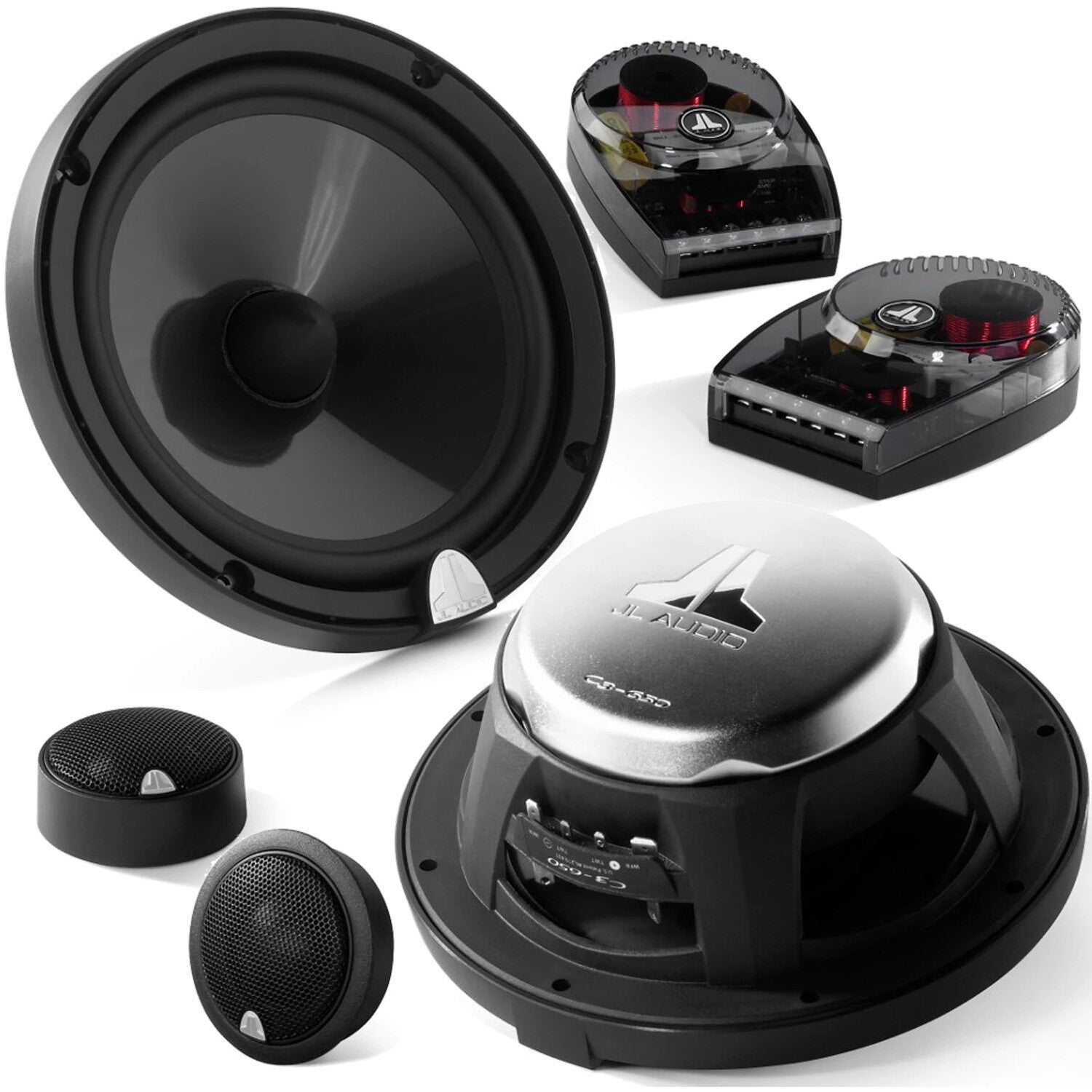

  • 2-way convertible component/coaxial system of 6-inch (150 mm) woofer and 1-inch (25 mm) silk dome tweeter

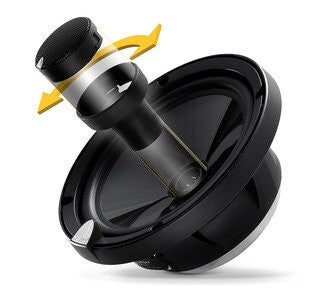

  • There are times when an installation requires a separate woofer and tweeter, and others when a coaxial speaker is the better solution. With the Evolution® C3 Convertible Component systems, the same product can be used in both configurations and deliver outstanding audio performance and quality in any application.
  • The new C3-600 expands the C3 product line to include a product for direct mounting in many Japanese vehicles that cannot accommodate a full-size 6.5-inch speaker.

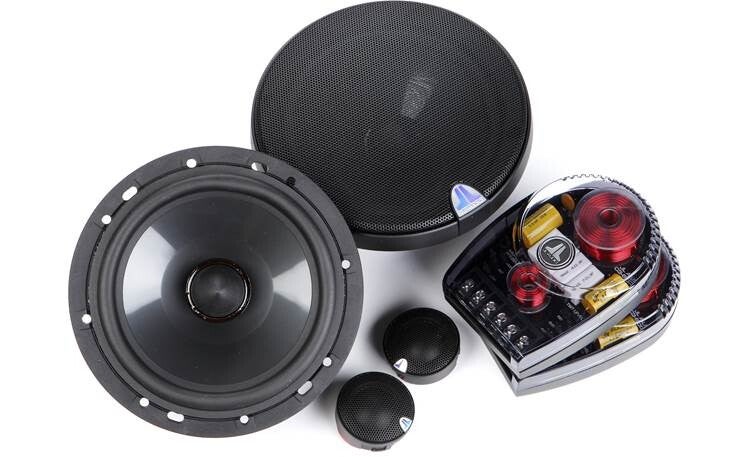

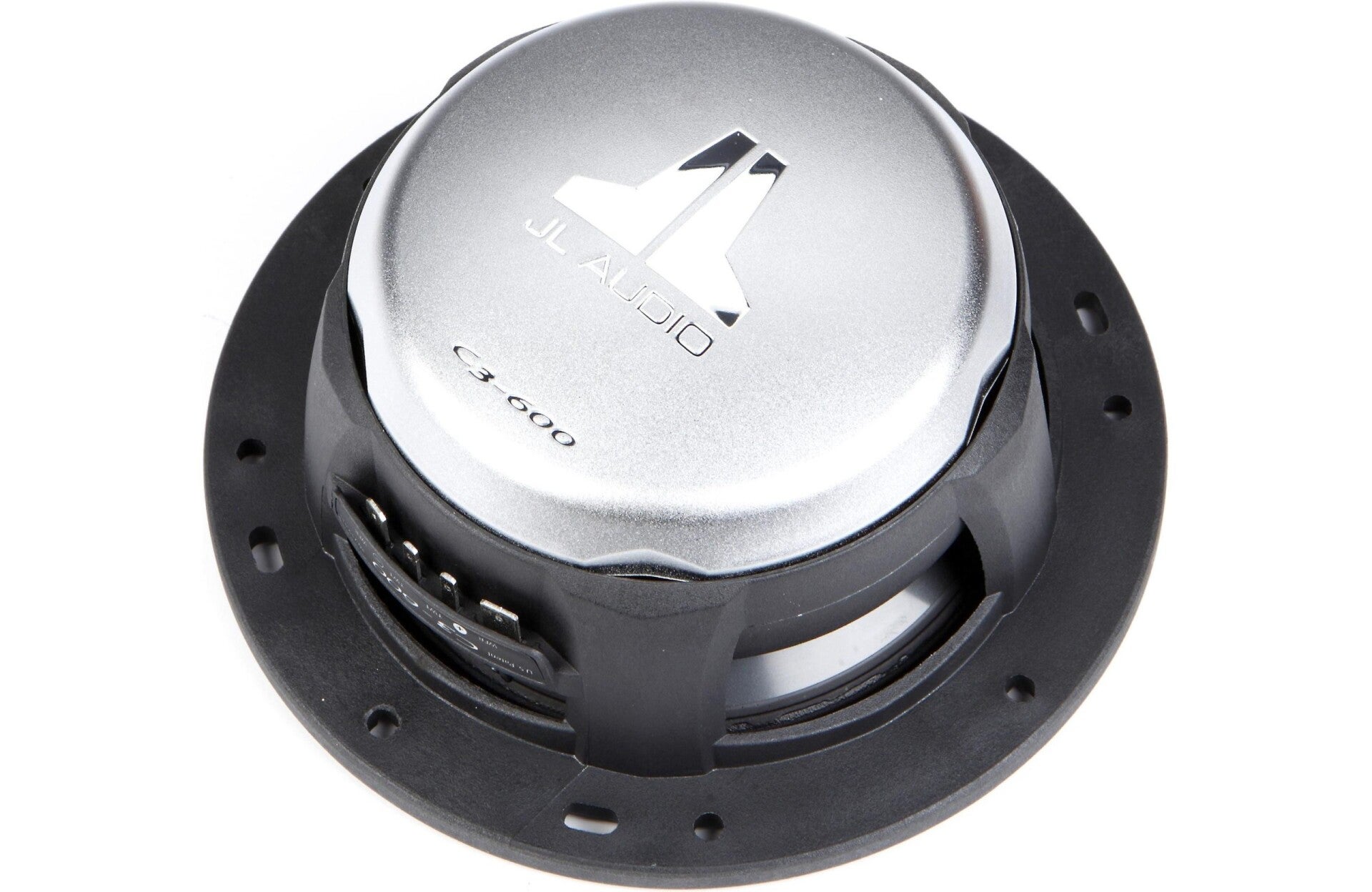

  • The C3-600 system includes 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.
  • The C3 tweeters are built with 1-inch silk dome cones that deliver a powerful, extended on- and off-axis response.
  • In-wall and on-wall mounting hardware is included to accommodate a variety of installation requirements.
  • The C3 crossovers are compact and made from high quality components, including Mylar® capacitors and segmented air core coils. Four levels of tweeter damping and three levels of midrange presence adjustment are available for twelve possible combinations!
  • Woofer grilles are included, each consisting of a black grille surround and a black steel grille with an electroformed JL Audio logo.
  • Sonic character: Clean and powerful
  • Sold as a pair.

General specifications

  • Continuous power handling (RMS) : 75 W
  • Recommended amplifier power (RMS) : 25 - 150 W / Ch.
  • System efficiency : 89.5 dB at 1 W / 1 m
  • Nominal system impedance : 4 Ω
  • System frequency response : 50 Hz - 25 KHz ± 3 db

Physical specifications of the woofers

  • Frame outer diameter (A) : 6.21 inch / 157.7 mm
  • Outer diameter of the grill shell (B) : 6.46 inch / 164.1 mm
  • Motor outer diameter (C) : 4.08 inch / 103.6 mm
  • Front coaxial tweeter projection* (D) : 0.81 in. / 20.6 mm
  • Front grille projection** (E) : 1.03 in. / 26.2 mm
  • Mounting hole diameter (F) : 5.00 inch / 127 mm
  • Mounting depth (G): 2.49 inches / 63 mm

Physical specifications of the tweeters

  • Diameter of flush mount bracket (A1): 54 mm / 2.12 in.
  • Diameter of the surface mount bracket (A2): 49 mm / 1.93 in.
  • Diameter of the hole for flush mounting (B) : 1.875 inch / 48 mm
  • Installation depth (C) for flush mount fixture : 18 mm / 0.71 inch
  • Flush mount tweeter Frontal projection (D1) : 8 mm / 0.32 inch
  • Surface mount tweeter front projection (D2) : 24 mm / 0.95 inch

Physical specifications of the crossover

  • Width (W): 85 mm (3.36 inches)
  • Height (H) : 1.44 inch / 37 mm
  • Depth (D): 120 mm (4.72 inches)
