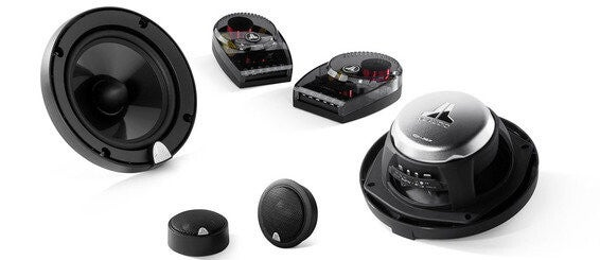

JL Audio C3-525 130 mm (5.25-inch) convertible component / coaxial system

JL Audio C3-525 130 mm (5.25-inch) convertible component / coaxial system
€539.00

JL Audio C3-525



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:

  • 2-way convertible component / coaxial system: 130 mm (5.25-inch) woofer, 25 mm (1-inch) silk dome tweeter
  • There are times when an installation requires a separate woofer and tweeter, and others when a coaxial speaker is the better solution. With the Evolution® C3 Convertible Component systems, the same product can be used in both configurations and deliver outstanding audio performance and quality in any application.
  • The C3-525 system features 130 mm (5.25 inch) component woofers with oversized 30.5 mm (1.2 inch) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.
  • The C3 tweeters are built with 1-inch silk dome cones that deliver a powerful, extended on- and off-axis response.

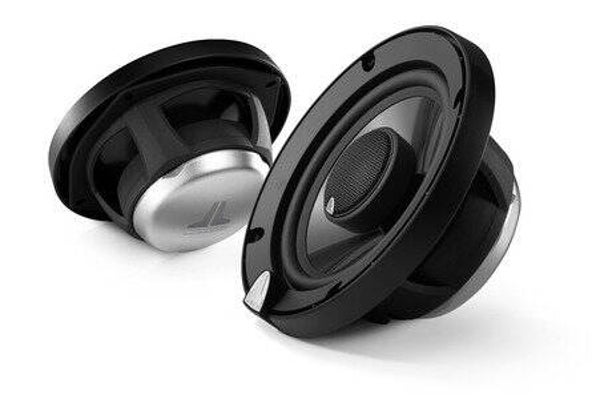

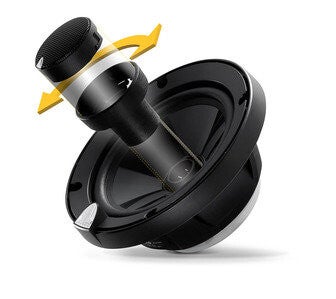

  • In-wall and "on-wall" mounting fixtures are included to accommodate a variety of installation requirements. They can also be mounted coaxially on the woofers using the brackets provided.

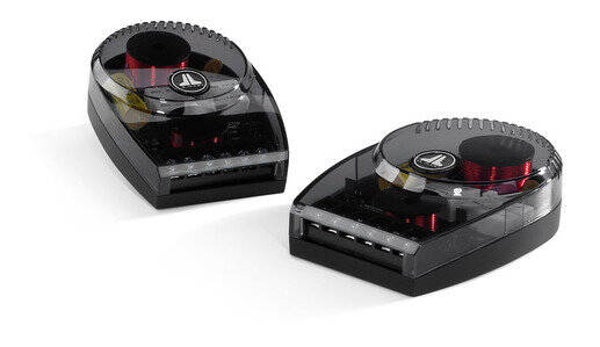

  • C3 crossovers are compact and made from high quality components including Mylar® capacitors and segmented air core coils. Four levels of tweeter damping and three levels of midrange presence adjustment are available for twelve possible combinations!

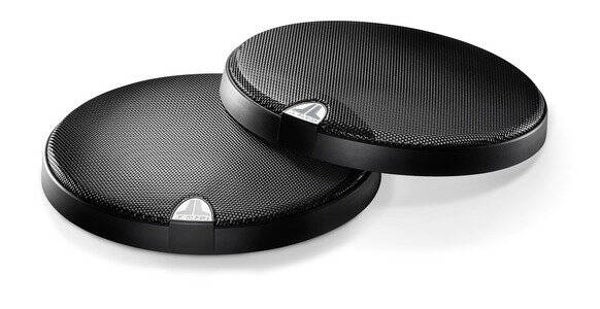

  • Mid-bass grilles are included, each consisting of a black grille surround and a black steel grille with an electroformed JL Audio logo.
  • Sonic character: Clean and powerful
  • Sold as a set.

General specifications

  • Continuous power handling (RMS) : 75 W
  • Recommended amplifier power (RMS) : 25 - 150 W / Ch.
  • System efficiency : 90.0 dB at 1 W / 1 m
  • Nominal system impedance : 4 Ω
  • System frequency response : 48 Hz - 25 KHz ± 3 dB

Dimensions woofer

  • Frame outer diameter (A) : 5.80 inch / 147 mm
  • Outer diameter of the grille channel (B) : 152 mm / 6.00 inches
  • Motor outer diameter (C) : 86 mm / 3.38 inches
  • Front coaxial tweeter projection*** (D) : 18 mm (0.69 inch)
  • Front grille projection (E) : 1.00 in / 25 mm
  • Mounting hole diameter (F) : 116 mm (4.56 in)
  • Mounting depth (G) : 58 mm (2.27 in)

Dimensions Tweeter

  • Diameter of the flush-mounted bracket (A1): 54 mm / 2.12 inches
  • Diameter of the surface-mounted bracket (A2): 49 mm / 1.93 inches
  • Diameter of the hole for flush mounting (B) : 1.875 inch / 48 mm
  • Installation depth (C) for flush mount fixture : 18 mm / 0.71 inch
  • Flush mount tweeter front projection (D1) : 8 mm / 0.32 inch
  • Surface mount tweeter front projection (D2) : 24 mm / 0.95 inch

Crossover dimensions

  • Width (W): 85 mm (3.36 inches)
  • Height (H) : 1.44 inch / 37 mm
  • Depth (D): 120 mm (4.72 inches)
