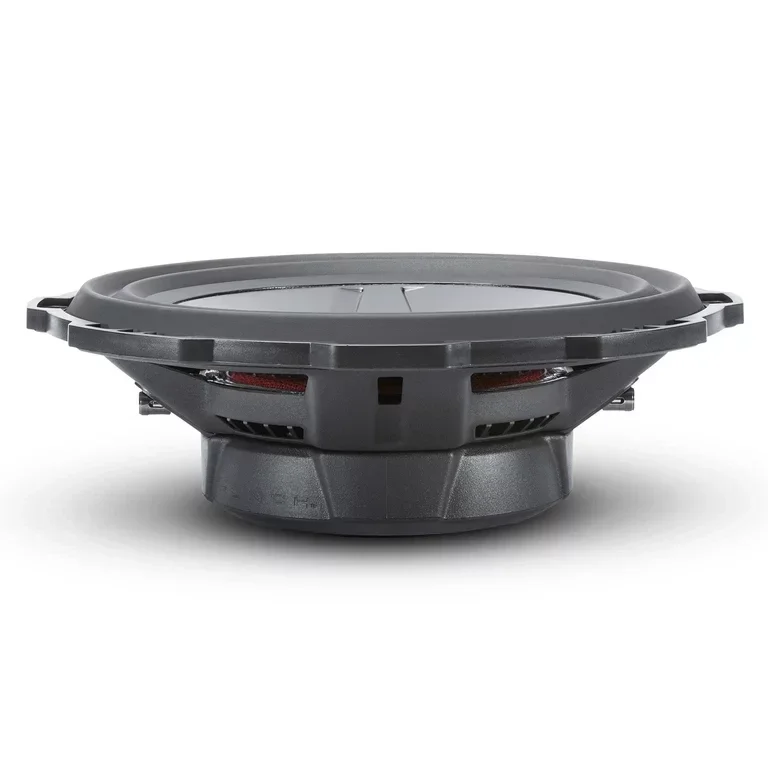

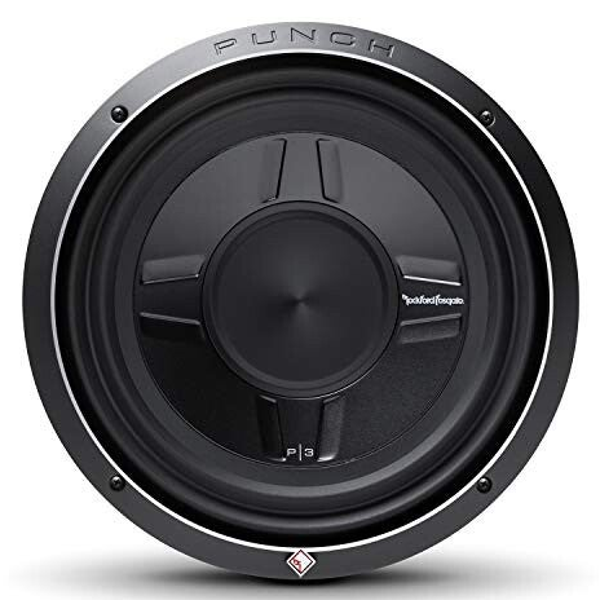

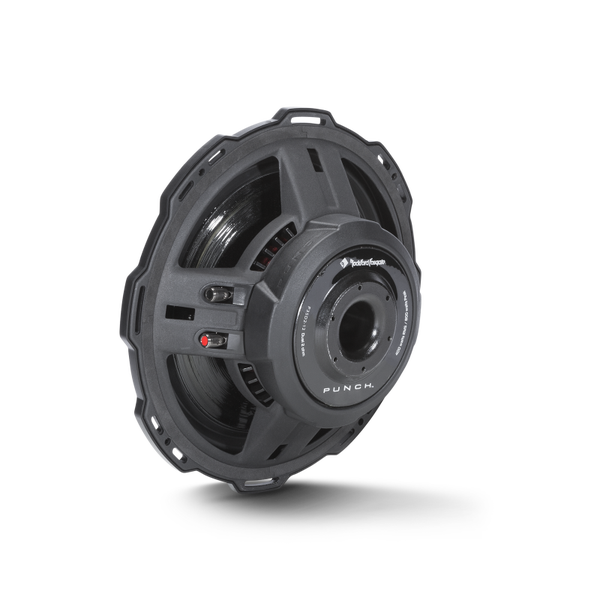

Rockford Fosgate Punch P3SD2-12/P3SD4-12
€279.00
Rockford Fosgate Punch P3SD2-12/P3SD4-12
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- M-Roll Santoprene™ surround
- StampCast basket with integrated spider ventilation
- Anodized aluminum cone and dust cap
- Diamond-cut cast aluminum trim ring with optional grille
- Dual linear spider with embedded 16 AWG fin leads
- Low profile motor design
- Optimized for sealed and vented enclosures
Specifications:
- 12" (30cm) flat subwoofer
- Power handling RMS 400 watts
- Power handling Max 800 Watt
- Installation depth : 92,5 mm
- Magnet weight : 1,47 kg
- Voice coil diameter : 65.5 mm
- Woofer displacement : 2.45 liters
- Cutout diameter : 285 mm
- Shipping weight : 6.01 kg
- Available in D2 or D4 impedance
- D2 (2x2 Ohm) variant:
- Nominal impedance Dual 2-Ohm
- Voice coil type : Dual voice coil
- SPL (dB @ 1w/1m) : 85
- Fs (Hz) : 34
- Qts : 0.67
- Vas (liters) : 35.3
- Qes : 0.75
- Qms : 6.60
- Xmax (mm) : 8.4
- Re (Ohm) : 3.40
- Le (mH) : 2.8
- Sd (cm2) : 500
- Closed case volume (Vb) : 28.3 liters
- Bass reflex cabinet volume (Vb) : 35.3 liters
- D4 (2x4 Ohm) variant:
- Nominal impedance dual 4 ohm
- Voice coil type dual voice coil
- Qms 5.70
- Vas (liter) 35.3
- Re (Ohm) 6.80
- Fs (Hz) 35.4
- Qts 0.72
- Qes 0.83
- Le (mH) 4.4
- Sd (cm2) 500
- SPL (dB @ 1w/1m) 85
- Xmax (mm) 8.1
- Closed cabinet volume (Vb) : 28.3 liters
- Bass reflex cabinet volume (Vb) : 35.3 liters
