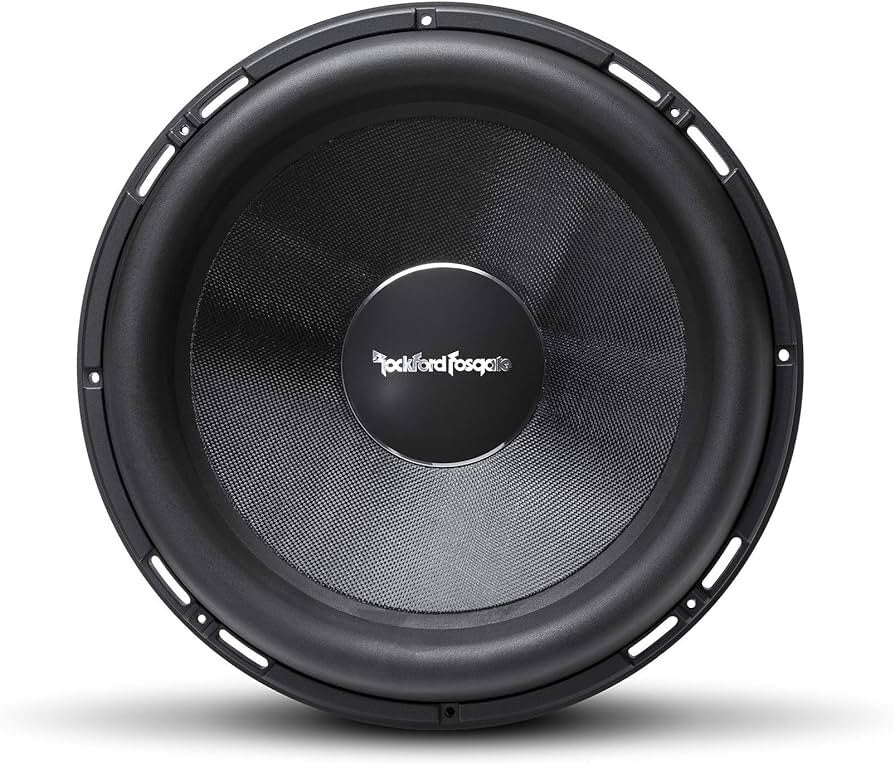

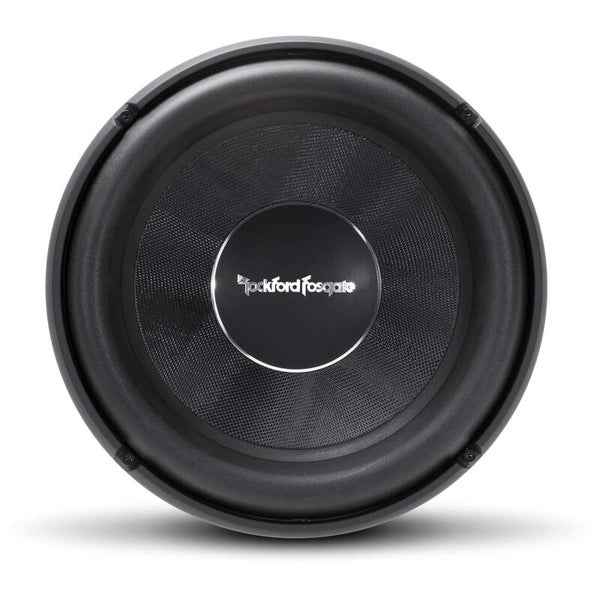

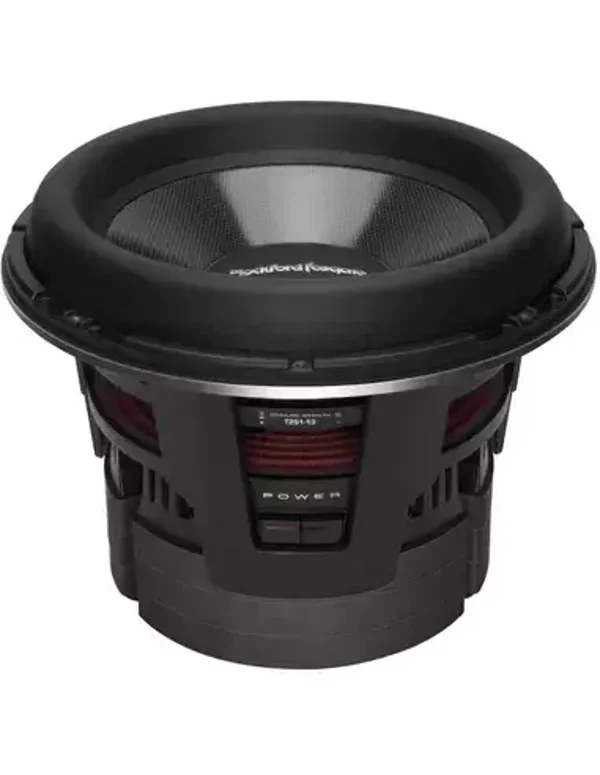

Rockford Fosgate Power T2S2-13 / T2S1-13 Subwoofer 13''

Rockford Fosgate Power T2S2-13 / T2S1-13

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 3 - 5 days extra delivery time ( pallet )

• Shipping note: only possible per pallet or pick up ( add to cart for delivery prices )

Productinfo:

• Three-layer fiberglass/aramid honeycomb/fiberglass cone.
• Aluminum dust cap
• Injection molded foam surround with VAST™
• Two progressive Nomex sprockets with integrated lead wires
• Proprietary mechanical clamping ring for the surround
• Die-cast aluminum frame with integrated cooling fins
• Insulated 8 mm² terminals with compression spring
• Removable die-cast aluminum cover ring
• Single layer, edge wound 4" aluminum voice coil
• Vented pole piece
• Triple stacked segmented ferrite motor structure
• Integrated aluminum shorting ring (IDHS)

Specifications:

• 12" (30cm) subwoofer
• Power handling RMS : 2000 Watt
• Power handling Max : 4000 Watt
• Voice coil diameter : 100 mm
• Installation depth : 246 mm
• Shipping weight : 42.5 Kg
• Cutout diameter : 312 mm
• Woofer displacement : 7.08 liters
• Magnet weight : 4.97 Kg
• Available in single 1 ohm and single 2 ohm impedance
• 2 Ohm variant:
  • Nominal impedance : 2-Ohm
  • Voice coil type : Single voice coil
  • Fs (Hz) : 25.5
  • Vas (liter) : 68.7
  • Qms : 3.01
  • Xmax (mm) : 34
  • Sd (cm2) : 707
  • Qts : 0.35
  • Qes : 0.40
  • Le (mH) : 0.91
  • SPL (dB @ 1w/1m) : 87
  • SPL (dB @ 2.8v/1m) : 90
  • Re (Ohm) : 1.6
  • Closed cabinet volume (Vb) : 52.3 liters
  • Bass reflex cabinet volume (Vb) : 113 liters
• 1 Ohm variant:
  • Nominal impedance 1 ohm
  • Voice coil type single voice coil
  • Fs (Hz) 25
  • Vas (liter) 69.3
  • Qms 2.93
  • Qes 0.39
  • Qts 0.34
  • Re (Ohm )0.9
  • Le (mH) 0.53
  • Sd (cm2) 707
  • SPL (dB @ 1w/1m) 87
  • SPL (dB @ 2.8v/1m) 90
  • Xmax (mm) 34
  • Closed cabinet volume (Vb) : 52.3 liters
  • Bass reflex cabinet volume (Vb) : 113 liters
